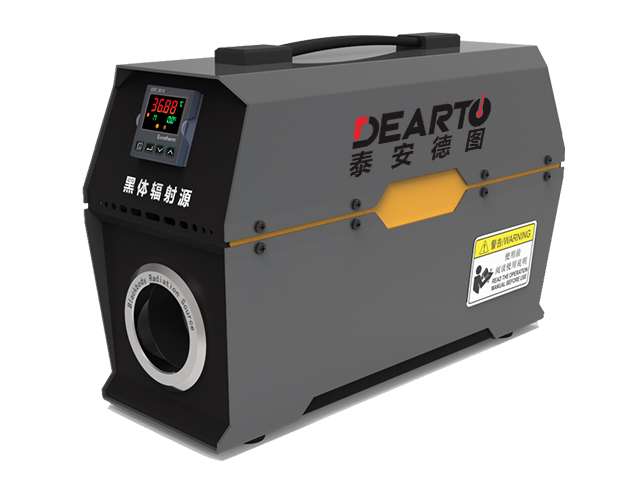

DTM Series-Portable Blackbody Calibration Source(Infrared Calibrator) the main function is to generate standard radiation at a certain temperature, so it is mainly used to verify various radiation thermometers in temperature measurement, such as optical high humidity meter, infrared thermometer, infrared thermal imager Etc.,
Our company's DTM blackbody Calibrators are divided into two types: cavity and surface source. The temperature range covers low, medium and high temperature sections. Customers can choose two different electrical control methods: ordinary type and color touch screen according to their needs.
Technical indicators
| Model | DTM-20NBG Blackbody Calibration Source | DTM-500BG Blackbody Calibration Source | DTM-500MG Blackbody Calibration Source |
| Temperature range | -20℃~ 150℃ | Room temperature+10℃~ 500℃ | 50℃~ 500℃ |
| Emissivity | Ε> 0.995 | Ε> 0.995 | Ε> 0.995 |
| Cavity size | Φ65 mm | Φ50 mm | Φ120 mm |
| Resolution | 0.1℃ | 0.1℃ | 0.1℃ |
| Stability of temperature control | ± 0.1°C | ≤(0.1℃ or 0.1%t, whichever is greater)/10min | At 50°C/± 0.3°C, at 300°C/± 0.4°C, at 300°C/± 1.0°C, 500°C |
| Uniformity of target surface | ± 0.15°C | ≤(0.15℃ or 0.15%t, whichever is greater) | At 50°C/± 0.3°C, at 300°C/± 0.4°C, at 300°C/± 1.0°C, 500°C |
| Power supply | 220VAC,50Hz | 220VAC,50Hz | 220VAC,50Hz |
| Power | 350W | 500W | 500W |
| Overall dimensions | 200*320*280mm | 260*200*260mm | 260*200*360mm |
| Net weight | 8.3Kg | 6Kg | about 10Kg |
